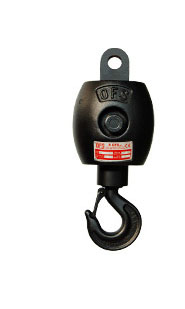

Load capacity: from 1t to 35 t

Hooks: DIN 15401/DIN15402 or shank hook
rotating on axial bearing

Weight: in steel or cast iron according to customer needs.

Storage: a support is needed to place the block

Certification: in order to guarantee their quality O.F.S. products can be certified upon request according to the International Standards by the main certification bodies

Design: blocks are produced according to O.F.S. design or developed on customer’s specification.

prodotti pullbottefreccia indietrofreccia avantipdf

Load capacity: from 2t to 15 t


Hooks: DIN 15401/DIN15402 or shank hook rotating on swivel.

Weight: in cast iron

Storage: a support is needed to place the block

Certification: in order to guarantee their quality O.F.S. products can be certified upon request according to the International Standards by the main certification bodies

Design: blocks are produced according to O.F.S. design or developed on customer’s specification.

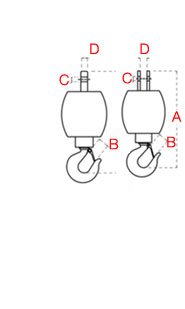

Load capacity (t)
øRope (mm)
Weight (kg)

BMG - 2
2
13
 16 BFG - 2
BMG - 3
3
16
 28 BFG - 3
BMG - 5
5
19
 49 BFG - 5
BMG - 7.5
7.5
22
 76 BFG - 7.5
BMG - 10
10
26
 130 BFG - 10
BMG - 15
15
32-35
 190 BFG - 15
BMG - 20
20
39-42
 260 BFG - 20
BMG - 25
25
43-48
 280 BFG - 25
